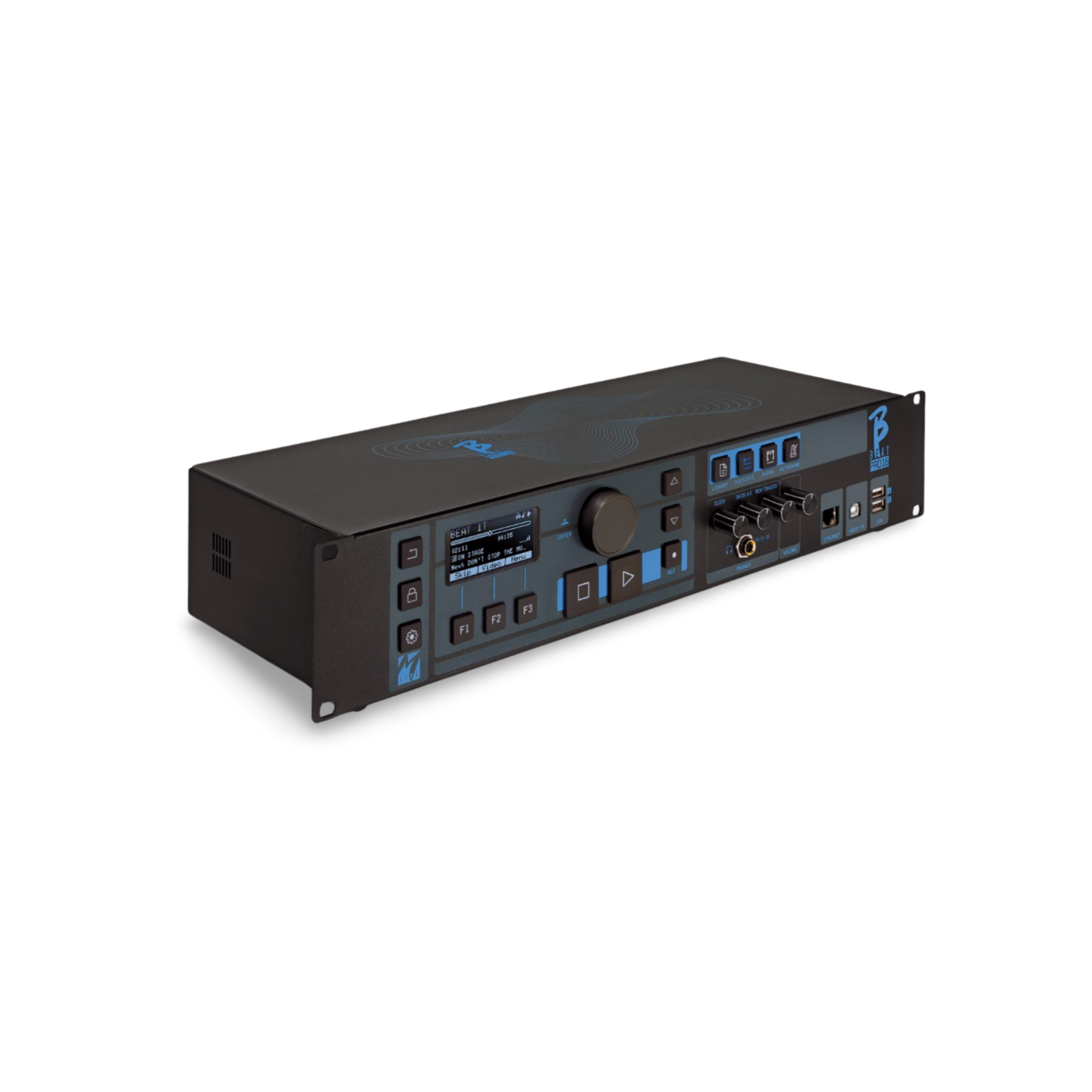

B-BEAT PRO 16 PLUS (1tb + Wi-Fi)

• Digital mixer with 24 tracks and 16 separate outputs
• 12 audio inputs + headphone output with customizable mix
• Integrated sound card: 16 outputs and 12 inputs (USB)
• Records up to 12 tracks, even during playback
• Two HDMI video outputs for Video Wall and Prompter
• Sheet music and lyrics display via Wi-Fi on smart devices
• Full control through the free B.Beat Manager app (Windows/Mac)

• Format: 19" Rack / 2U
• Audio formats: WAV, MP3, OGG, AAC, STEMS, MTA M-Live
• Video/Image formats: MP4, MOV, AVI, JPG, PNG
• Internal processing: 16 D/A and 12 A/D channels (24-bit, 48 kHz)
• Display: 2.4" OLED
• Storage capacity: 1 TB
• Dimensions: 480 x 170 x 70 mm
• Weight: 2.95 kg

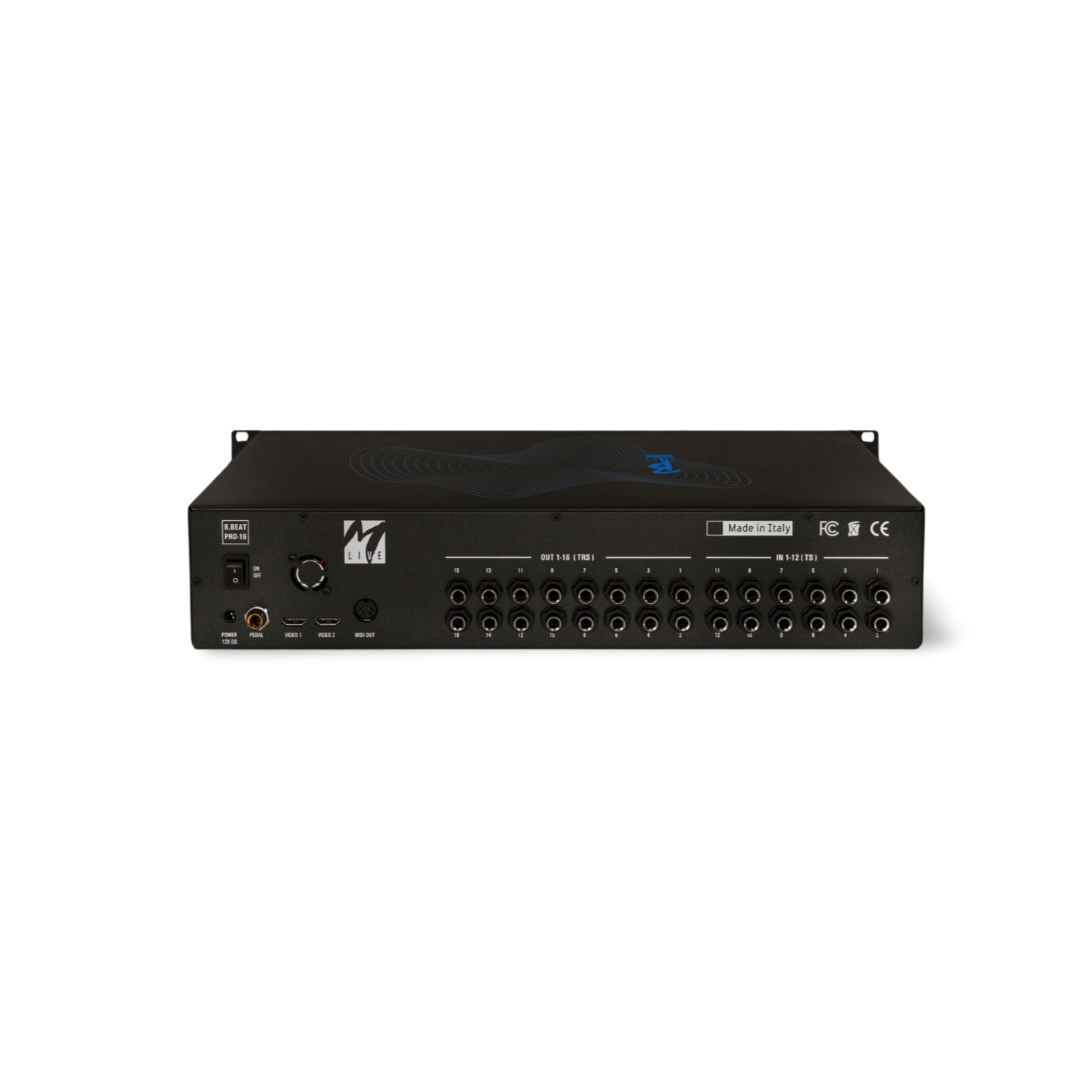

Connections:

• 16 balanced audio outputs (6.3 mm jack)
• 12 unbalanced audio inputs (6.3 mm jack)
• Headphone output (6.3 mm jack)
• Start/stop pedal input (6.3 mm jack)
• Ethernet RJ45, MIDI, 2x USB-A, USB host
• Built-in Wi-Fi
• 2 HDMI outputs (1920x1080)

Because it integrates everything a band or artist needs for a professional live show. It allows you to manage audio, video, sheet music, lyrics, and recordings all from one place, with maximum stability. Its [LIVE] mode ensures system resources are fully focused on performance without interruptions.

• Touring musicians and bands
• Live sound tech teams
• Events requiring professional audio-visual support
• Producers and studios looking to record rehearsals and shows in high quality

• Eliminates the need for extra stage gear
• Simplifies full control of audio, video, and MIDI tracks
• Optimizes rehearsals and sound checks with its integrated sound card
• Easily records rehearsals or shows in 12 tracks
• Enhances musicians' experience with personalized headphone monitoring

Can I use it with my DAW on PC?

Yes, the B-BEAT PRO 16 PLUS works as a USB audio interface with 12 inputs and 16 outputs—perfect for working with your favorite DAW.

Can I display sheet music or lyrics on stage?

Absolutely. Via Wi-Fi, you can transmit synchronized lyrics or PDF sheet music to smart devices.

Does it work without a PC?

Yes. Everything can be controlled via its onboard display or the B.Beat Manager app.

Is it reliable for live shows?

Completely. The LIVE mode and sync system prevent interruptions during performances.

How many tracks can I play simultaneously?

Up to 24 tracks, routed across 16 physical outputs.

Can it record while playing a backing track?

Yes. The PLUS version allows up to 12 channels to be recorded while a track is playing.

Is it compatible with both Windows and Mac?

Yes. Its USB audio interface works with both operating systems.

Can I use it standalone on stage without a computer?

Yes. It’s designed to function independently, no PC or tablet required.

What if something goes wrong during a live show?

It has a built-in protection system and a LIVE button that prioritizes performance, ensuring no accidental interruptions.

What file types can it play?

Audio: WAV, MP3, OGG, AAC, STEMS, MTA M-Live
Video/Image: MP4, MOV, AVI, JPG, PNG

Can each musician have their own headphone mix?

Yes. The headphone output allows a personalized monitor mix in real time.

Can I display sheet music or lyrics to the band?

Yes. You can load PDF scores and synced lyrics, viewable on connected Wi-Fi devices.

Can I control lighting or send MIDI messages from the unit?

Yes. B-BEAT supports MIDI tracks and can send messages to different devices.

Does it come with management software?

Yes. It includes the free B.Beat Manager app for Windows and Mac, allowing you to manage projects, playlists, and media.

How many musicians can use it at once?

With 16 separate outputs, it's perfect for full bands or large ensembles.

Does it have video outputs for screens?

Yes. It has two HDMI outputs, ideal for both a video wall and a lyric prompter simultaneously.

Do I need an internet connection to use it?

No. Wi-Fi is for internal device connectivity (e.g., tablets). No internet connection is required for use.
